Cheap Industrial power-saving air conditioner cooling principle Manufacturers, Company

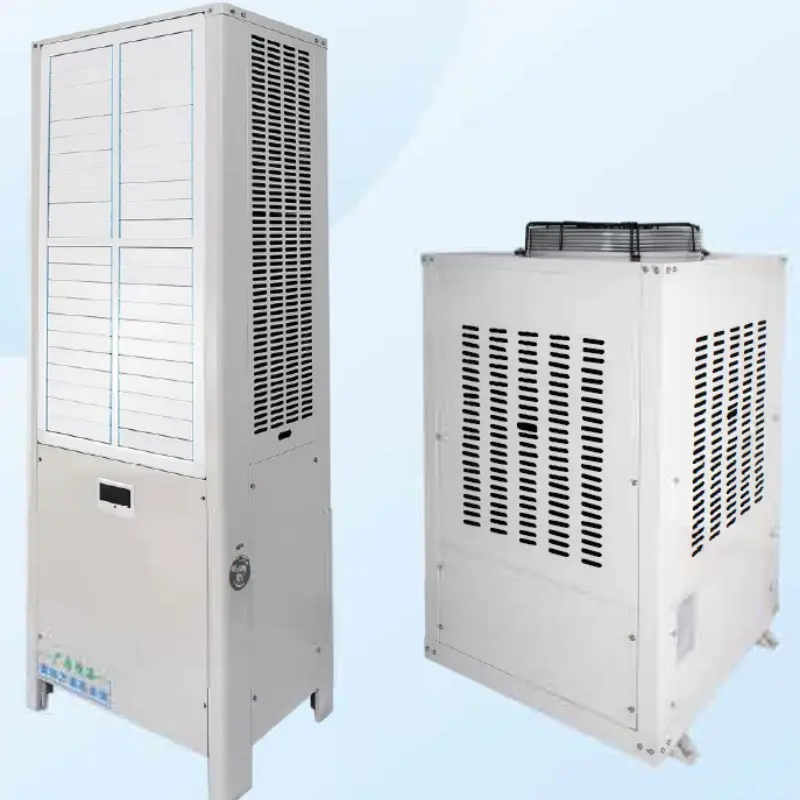

ALOE FANS have launched own-produced industrial power-saving air conditioner system built in a heat-absorbing medium - refrigerant, the refrigerant through the expansion valve throttled by the unit inside (evaporator), the indoor end will blow cold air to the space: absorb the heat in the indoor air, refrigerant through the pipeline back to the compressor suction end, through the compressor compression, increased the temperature of the refrigerant, in through the outdoor machine (wet curtain radiator) so that the refrigerant from the vaponzed state to the liquefied state, in the process of conversion, release a lot of heat, through the outdoor machine fan will be discharged heat, through the cycle of weeks and weeks, to achieve the purpose of cooling.
Industrial Power-Saving Air Conditioning Technology Advantages
Industrial power-saving air conditioner is currently the preferred efficient cooling (water-cooled + air-cooled) dual cooling method. 1 lite of water evaporation heat intake of 2270 kilojoules, equivalent to 2300 BTU of cooling capacity.
The core component of the direct evaporative heat exchanger type 5090 "multi-layer corrugated fiber laminated" wet curtain is a patented product, with good water absorption and ventilation performance. The actual heat transfer area is 100 times the surface, providing water immersion resistance, corrosion resistance, and a normal service life of more than 5 years.
Water-cooled temperature reduction can reduce the water-cooled pressure of the refrigeration system and the exhaust pressure of the compressor, so that the compressor achieves the highest energy efficiency ratio and minimizes the input power. Even in the harshest environments, the power-saving air conditioner can reduce the water-cooled condensing temperature to 35°C.
Four Core Components
Compressor
Utilizes high-quality, century-old brand compressors using R410A environmentally friendly refrigerant for superior reliability.
Condenser (Heat Exchanger)
Features high-efficiency plate-type 316L heat exchangers, recognized for world-class efficiency. Unlike cheap shell-and-tube alternatives, this prevents scaling at 45-degree temperatures and maintains refrigeration capacity without rapid attenuation.
Refrigerant Energy-Saving Valves
Equipped with world-renowned electronic expansion valves. These play a critical role in energy saving, efficiency improvement, and fast cooling by adjusting to return air temperature changes.
External Unit Cooling System
Uses a high-temperature 45-degree detection instant cooling system. The external unit support frame is made of 304 stainless steel, ensuring durability in high temperature and high humidity conditions.
Compressor & Heat Exchanger Technology

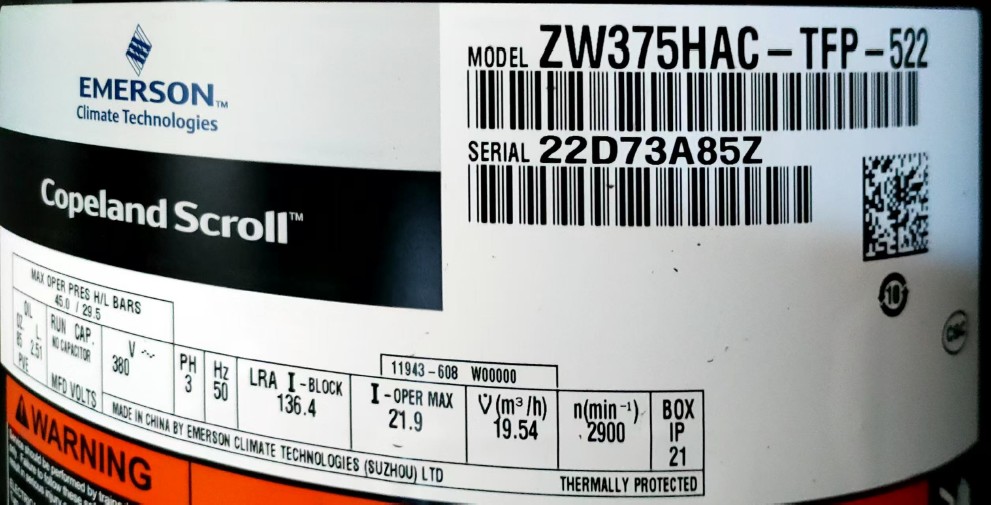

Copeland Compressor: Suitable for long-term operation in harsh environments. It features lower noise levels and energy consumption compared to ordinary compressors, delivering higher horsepower with less power input.

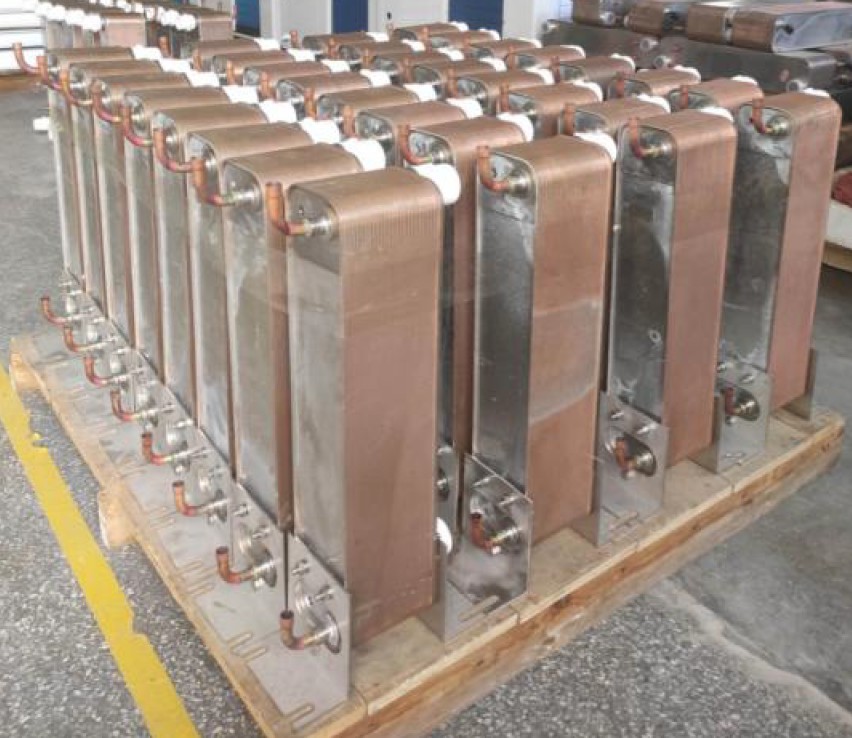

316L Heat Exchanger Plate: Provides excellent heat exchange effect with water temperatures maintained at 35℃. The 316L stainless steel construction allows for convenient acid cleaning and long-term maintenance.
Evaporator & Wet Curtain System

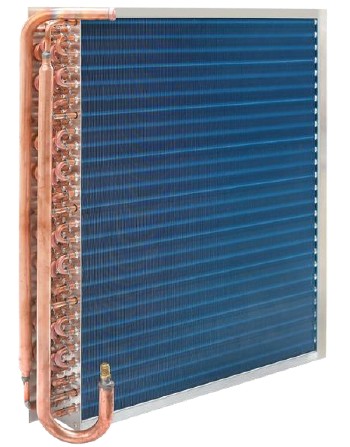

The double-row radiator uses closely spaced copper tubes for rapid refrigerant condensation. The aluminum foil is spaced at 2mm to maximize cooling conductivity.

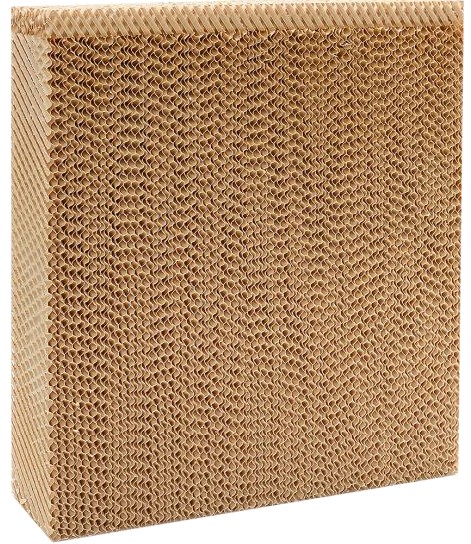

Evaporative Condenser Wet Curtain: Made from environmentally friendly wood pulp, the material is non-corrosive and odorless. The radiator is water-cooled, improving cooling effects by over 30% in high-temperature environments.
Refrigerant & Control Panel

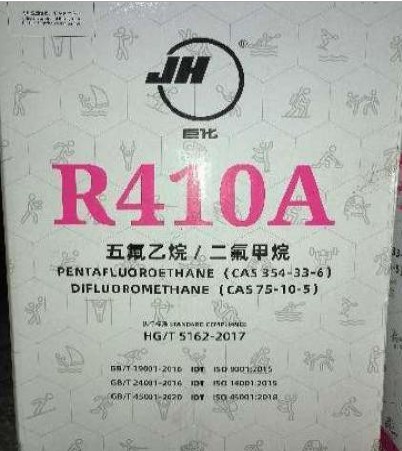

Eco-Friendly Refrigerant: Uses advanced compounds that do not damage the ozone layer. It is non-combustible and non-explosive, increasing condensation efficiency by over 6% for better energy savings.

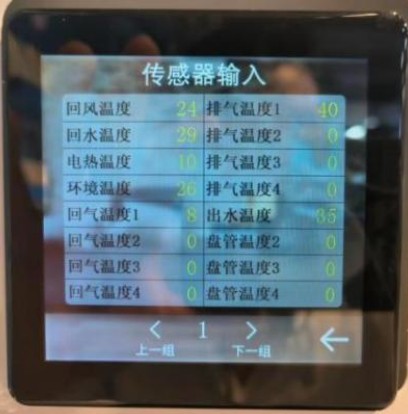

Intelligent Control Panel: Supports multiple languages and features a touch screen for accurate monitoring. Built-in with over 20 detection probes for real-time status updates and abnormal data alarms. Supports OTA upgrades.
Model
ALOEAC-17
ALOEAC-28
ALOEAC-35
ALOEAC-53
Nominal cooling capacity
17KW
28.5KW
35KW
53KW
Rated power
3.7W
6.5KW
6.8KW
10.3KW
Maximum air volume
5000m³/H
9000m³/H
10000m³/H
12000m³/H
Energy efficiency ratio
4.59
4.4
5.14
5.14
Noise Level
≤53dB
≤55dB
≤65dB
≤68dB
Applicable area
150-200m²
200-250m²
250-350m²
350-450m²
Frequently Asked Questions (FAQ)
What makes this air conditioner more efficient than traditional industrial units?
It utilizes a dual water-cooled and air-cooled method. By using water evaporation to absorb heat, it significantly reduces the compressor's workload, achieving a much higher energy efficiency ratio.
How long is the service life of the wet curtain component?
The patented 5090 multi-layer corrugated fiber wet curtain is designed for durability with water immersion and corrosion resistance, typically lasting more than 5 years under normal use.
Is the unit suitable for very high-temperature environments?
Yes, even in the harshest environments, the system can reduce water-cooled condensing temperatures to 35°C. The 304 stainless steel and 316L heat exchanger are specifically designed to withstand high humidity and heat.
What are the benefits of the electronic expansion valve?
Unlike traditional capillary throttling, the electronic expansion valve adjusts the refrigerant flow in real-time based on temperature changes, leading to faster cooling and significant energy savings.
Is the refrigerant used safe and environmentally friendly?
Absolutely. We use R410A compound refrigerants that do not damage the ozone layer and have no risk of combustion or explosion, making them safe for industrial settings.
Can the control system be upgraded remotely?
Yes, the intelligent control panel supports OTA (Over-the-Air) upgrades, ensuring your system stays updated with the latest monitoring features and stability improvements.
